Duru İmalat | Industrial Conveyor Drums
High-Performance Conveyor Drums: The Heart of Your System
Conveyor systems are the lifeline of industrial facilities, and the most critical component of these systems is the conveyor drums. Drums, which bear the greatest workload during material transport, have a direct impact on the system's efficiency, reliability, and lifespan. As Duru İmalat, we design and manufacture high-strength conveyor drums, customized for your project and tailored to all types of industrial needs.
Drum Types by Primary Function
In a conveyor system, each drum has a specific task:
- Drive (Motor) Drums: This is the main drum that transmits motion to the conveyor belt and is generally located at the head of the system. Its surface is usually coated with special materials to prevent belt slippage and ensure maximum power transmission. Multiple drive drums can be used on long lines.

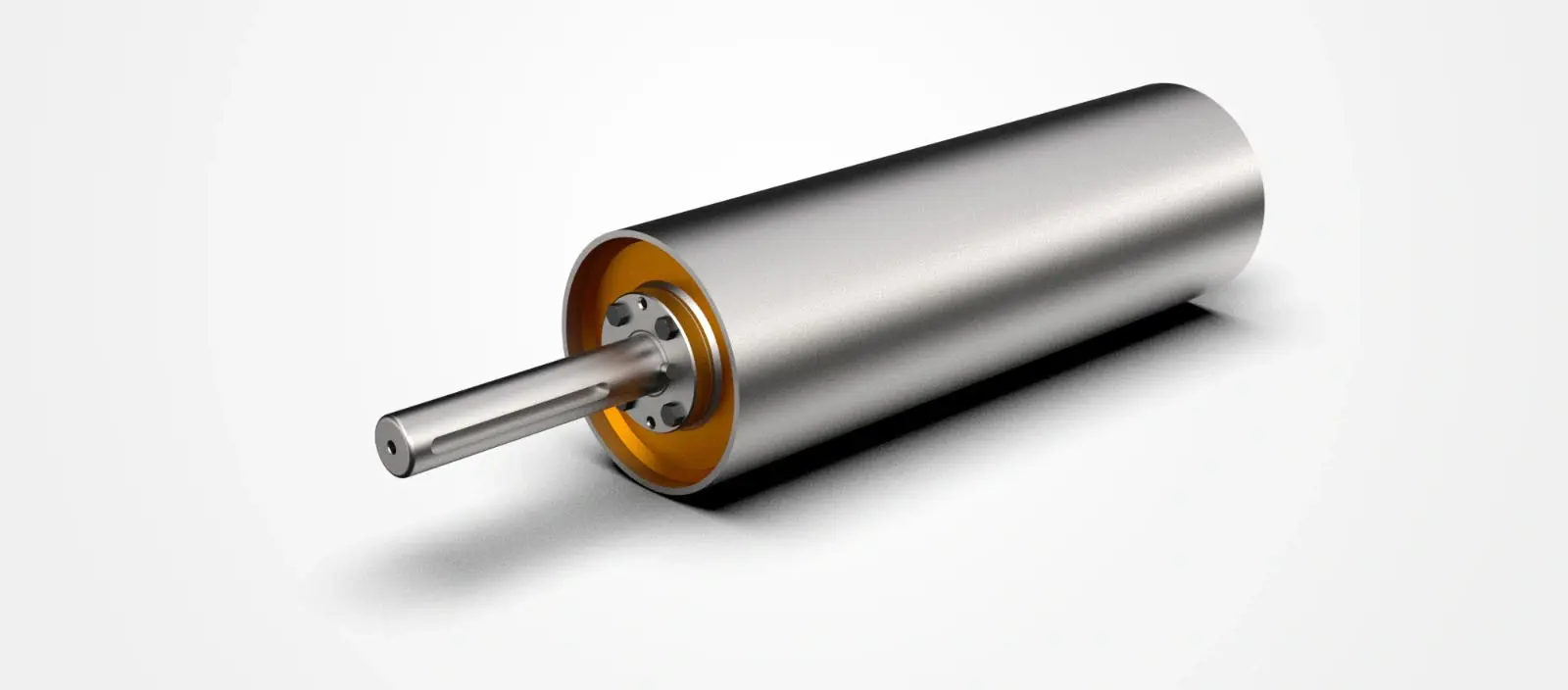

- Tail and Tension Drums: These drums are located at the end of the system, providing the belt's return (tail) and maintaining the ideal level of tension in the belt (tension). They are generally produced without coating, but a slight crown (conicity) is applied to their surfaces to help keep the belt centered.
Custom Drum Solutions and Coating Options for Your Application
As Duru İmalat, we offer a wide range of drums and coating options to provide the most suitable solution for your project's requirements:

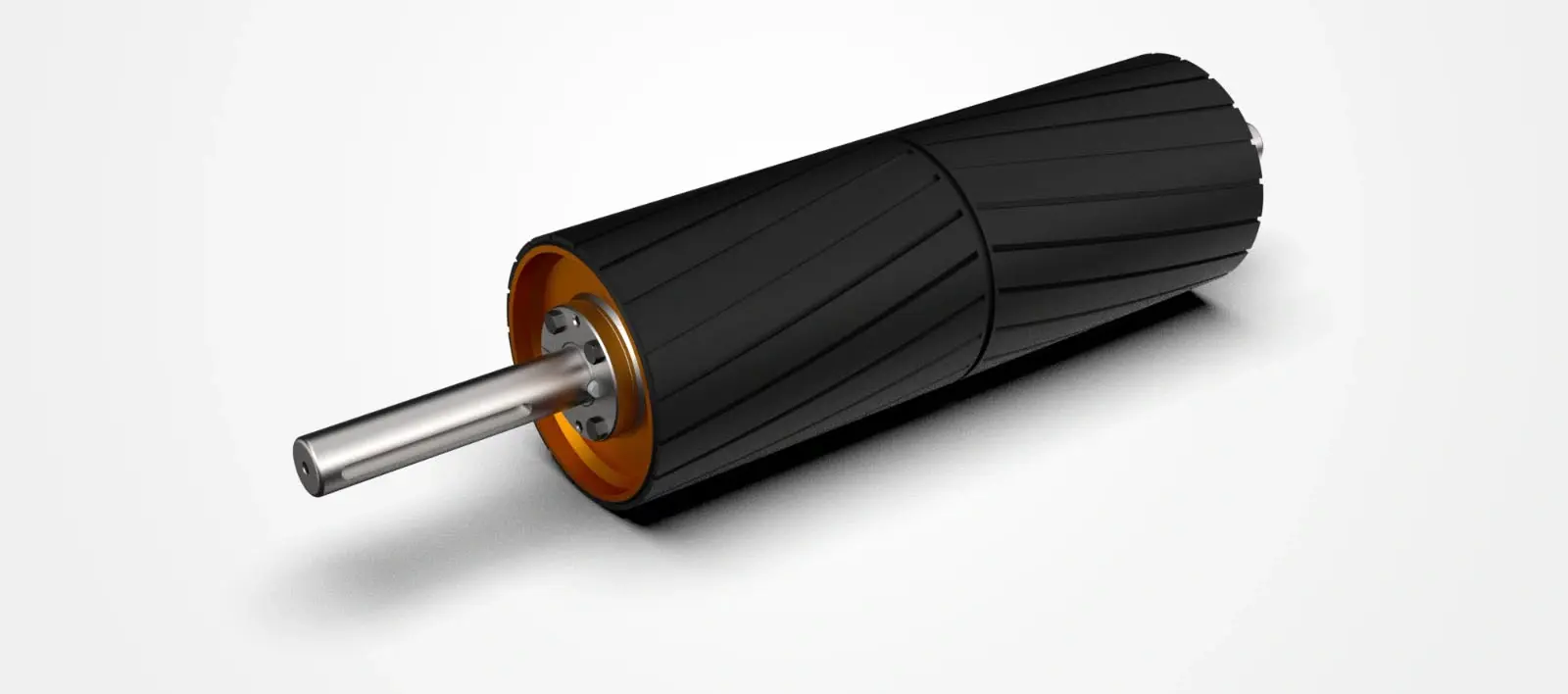

- Rubber Coated Drums: The ideal solution for increasing friction on drive drums to prevent belt slippage.
- Application: Hot vulcanized coating with a thickness of 10-25 mm.
- Hardness: Standard hardness of 65 ± 5 Shore.
- Patterns: Diamond or Chevron patterned surfaces for high grip.
- Ceramic Coated Drums: Offer maximum grip and long life in challenging environments where wet, muddy, and abrasive materials are transported, and where rubber is insufficient.
- Polyurethane Coated Drums: Ideal for applications requiring high wear resistance. They are custom-produced for your project in the desired Shore hardness and color.

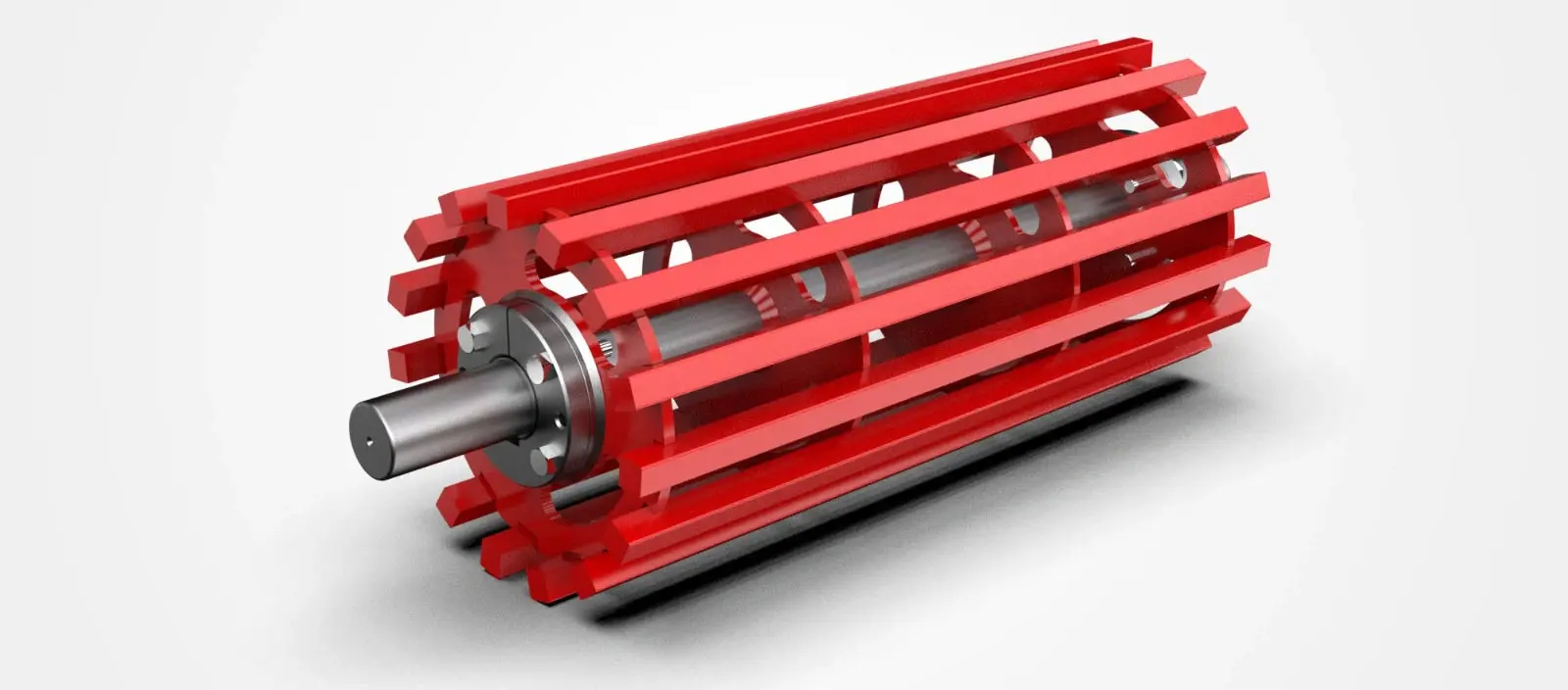

- Wing Pulleys: Thanks to their self-cleaning feature, they prevent sticky and loose materials from adhering to the drum surface. They prevent buildup by allowing material to fall through the wing gaps.
- Elevator Drums: These are drums specially designed to drive the bucket belt in bucket elevator systems, usually in more compact sizes. They can be produced with or without a rubber coating upon request.
- Magnetic Drums: Used especially in the recycling and mining sectors to separate metal (iron) parts from the transported material.
Our Engineering and Design Superiority
All our drums are designed to provide years of trouble-free service under harsh industrial conditions:
- Durable Body Structure: Production in diameters ranging from 220 mm to 1400 mm and surface widths from 400 mm to 3000 mm, calculated according to the load it will carry.
- Removable Shaft Design: A removable shaft structure connected to the drum body with a collet system, providing ease of maintenance and assembly.
- Belt Alignment (Tracking): A precision crowning (conicity) process on tension and tail drums to prevent belt slippage and keep it centered.
As Duru İmalat, we are here to provide the most suitable conveyor drum solution for your project's requirements. Take your project to the next level by contacting our expert team for your standard or completely custom-designed drum needs.
